Note: This product can be made according to the drawings and requirements provided by the customer!
Product features of trough liquid distributor:
In order to improve the uniformity of fluid distribution in the pre-distribution pipe of the trough liquid distributor, the uniform opening is changed into two opening methods: non-uniform opening Ⅰ and non-uniform opening (pressure relief hole) Ⅱ. With the help of computational fluid dynamics software FLUENT, the k-ε model is used to perform numerical simulation and solve its three-dimensional flow field. The analysis shows that the outflow rate of each hole, the static pressure in the pipe and the turbulent kinetic energy distribution are the most uniform when the opening diameter is changed and a pressure relief hole is added. It is suitable for engineering operations.

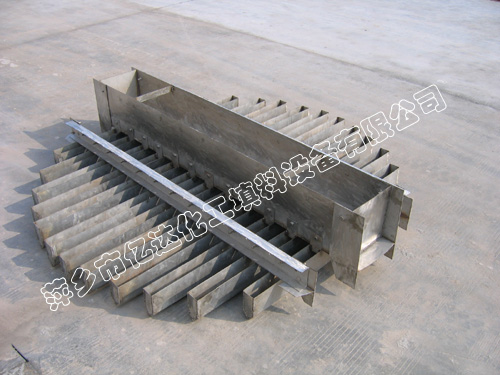

Structural form
——The main tank and the sub-tank are integrated
——The liquid first enters the main tank, flows horizontally from the main tank to each sub-tank, and then is distributed to the surface of the packing by each sub-tank
——Anti-impact plate is provided in the main tank; overflow holes are opened at the top of each sub-tank, and liquid distribution holes are opened at the bottom
——To prevent clogging, a filter frame is provided at the liquid inlet above the main tank
Material
——Stainless steel plate
——Special materials can be selected and customized according to user needs for special application occasions
Features
——The liquid level of each sub-tank can be uniform and consistent, and the liquid distribution quality is high
——The gas channel is uniform, the cross-sectional area is large, and the pressure drop is low
——High operating flexibility
——Small tower space
Application occasions
——Commonly used for smuggling 0.25~1 meter small towers, and can also be used for large towers with limited space
——High-purity precision fractionation
——Fractionation tower with large gas phase load
——Plate tower and ordinary bulk packing tower modified to improve production and product quality
Application examples
——Oil refining, petrochemical fractionation tower
——Air separation unit fractionation tower
——Fine chemical precision fractionation tower
-
