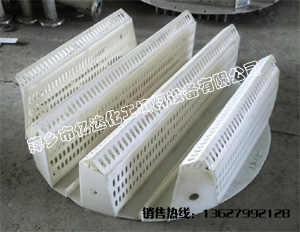

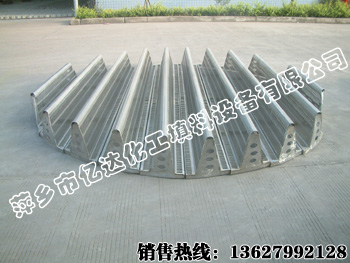

Hump support plate is currently the best performance and most widely used large tower support for particle fillers. It is widely used in oil refining, chemical industry, fertilizer, ethylene and oxygen production, and the maximum diameter of the applied one is more than 10m. In addition, there are bell-shaped supports, corrugated plate mesh supports and grid supports.
The characteristics of hump support plate are:
(1) Good rigidity, large allowable load, and can reliably withstand various pressures applied to it.
(2) Excellent fluid mechanics properties.
(3) Filler particles or fragments are not easy to block the orifice. For fillers less than DN25, a layer of 300mm high large fillers can be built on the support plate first, and then small fillers can be stacked.
(4) Light weight and material saving. It can be made of metal, plastic, ceramic, graphite and other materials.
(5) The unit combination structure is convenient for installation from the manhole.
(6) Its three-dimensional structure of the support plate is conducive to increasing the opening area, so that the opening area is mostly around 100%. The principle of the opening area is that the opening rate must be greater than the void ratio of the packing layer, otherwise the support plate will form a "bottleneck" area, which will reduce the tower load. The opening area is related to the structure, material, and tower diameter. It generally accounts for 70%-100% of the tower cross section, and should be about 100% for metal support plates.
Implementation standard: HG/T 21512-95
-
