The Rasching ring was developed by F. Rasching in 1914. It is one of the first bulk packings with a fixed geometry to be invented. It was the first tower packing to be developed and one of the earliest man-made packings used in industry. Usually made of ceramic or metal sheet, its height and diameter are equal, the common size of 25mm ~ 75mm (also as small as 6mm, as large as 150mm). Ceramic wall thickness of 2.5mm ~ 9.5mm, metal ring for 0.8mm ~ 1.6mm, in the case of strength permits, the wall of the ring should be as thin as possible. Lacy ring although the mass transfer performance is not ideal, but because of the simple structure, easy to manufacture, low price, still used for some factories.

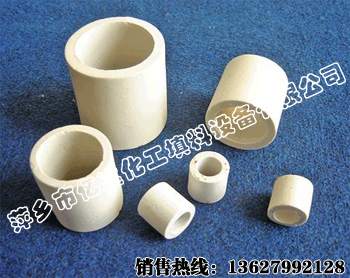

Characteristics of ceramic Lacy ring packing.

Lacy ring packing ring outside diameter and height are equal, large size of the Lacy ring (more than 100MM) is generally used in the whole way rule filling, 75MM size below the Lacy ring is generally used in the way of chaotic pile filling. Lacy ring packing structure is simple, low price, but there are liquid distribution is not uniform and serious wall flow ditch flow phenomenon and other strongholds. Due to the high rate of Lacy ring packing openings, large voids, large flux, resistance is small, so that the packing tower gas and liquid can be free to pass through the packing layer of the gas and liquid distribution is relatively good, especially the inner surface of the packing ring is easy to be wet by the liquid, regardless of its orientation, sprinkled with liquid on the packing, some flow along the outer wall, some flow along the inner wall. In this way, the liquid dispersion increases, and the utilization rate of the inner surface of the packing increases. Therefore, not only has a larger throughput capacity and lower pressure drop, and the tower mass transfer separation efficiency is also high!



Application of ceramic Lacy ring packing:

Ceramic Lassie ring because of its chemical properties of the material is stable, low cost in filtration, petrochemical, coal chemical industry in the drying tower, absorption tower, cooling tower, scrubber tower, regeneration tower in a large number of uses. Now the general use of corrosion-resistant ceramic Lassie ring used in the acid industry. Lassie ring packing has excellent acid and heat resistance, can resist the corrosion of various inorganic acids, organic acids and organic solvents other than hydrofluoric acid, can be used in a variety of high and low occasions, the application range is very wide.



Specification parameters of ceramic Lacy ring packing:
