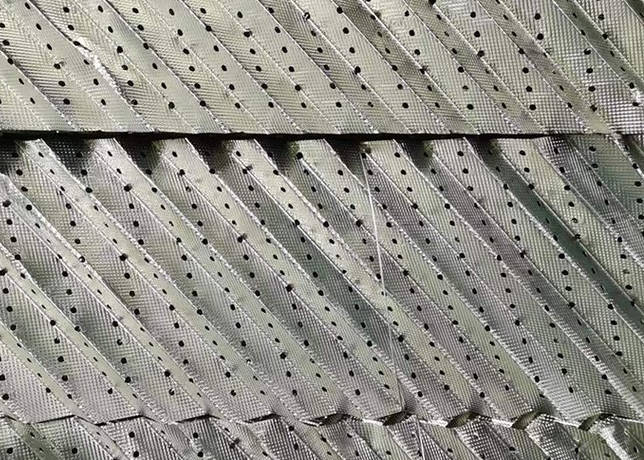

Wire mesh corrugated packing (stainless steel corrugated packing) is an important milestone in the development of regular packing, it is composed of a number of parallel rectilinear metal corrugated mesh arrangement of disc-shaped packing, in the metal plate first pressed out of the density of very small aperture diameter of 0.4 diameter 0.5mm holes, and then the multi-punched holes in the plate pressed into the corrugated sheet assembled into a regular packing, due to the surface of the special punched holes in the surface of the structure and improve the packing Due to the special perforated structure on the surface, the wettability of the packing is improved and the performance of the wire mesh corrugated packing can be maintained. Stainless steel corrugated packing is divided into perforated plate corrugated packing, plate mesh corrugated packing, calendered perforated plate corrugated packing, wire mesh corrugated packing and ring-type corrugated packing.

Features of wire mesh corrugated packing (stainless steel corrugated packing):

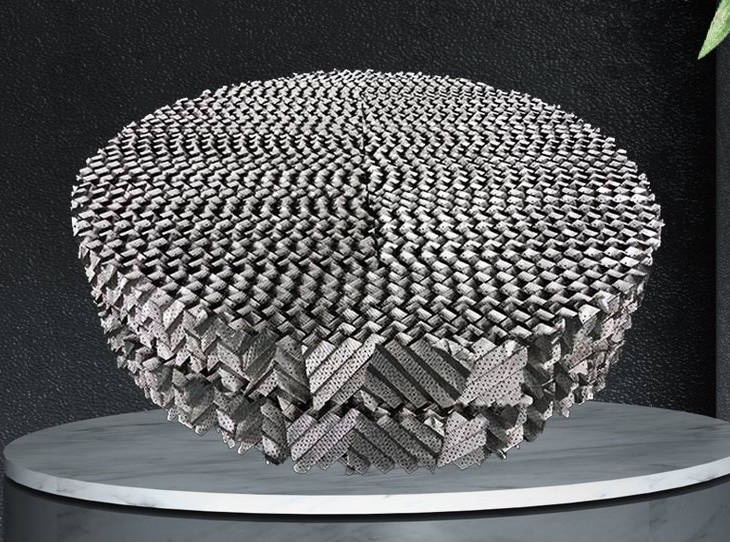

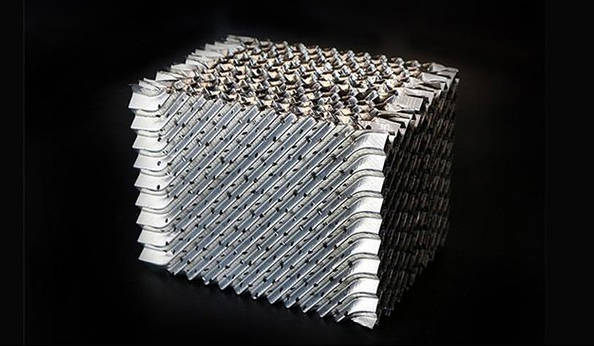

Metal wire mesh corrugated packing (stainless steel corrugated packing) has a corrugated top angle of about 90 degrees, and the channel formed by the corrugation is 45 degrees or 30 degrees from the vertical. Adjacent two corrugated sheet flow channel into 90 degrees, the upper and lower two discs of corrugated packing rotated 90 degrees stacked, in the diameter of a small flange connection tower, corrugated packing made into a whole disk, the diameter is slightly smaller than the inner diameter of the tower. In the larger diameter tower, each disk of corrugated packing is divided into several pieces, through the manhole into the tower, in the tower pulled together into a complete disk, the upper and lower two discs of packing corrugated sheet rotated 90 degrees installed, so that the fluid is fully mixed in the tower. With B thin, large void ratio, large flux, light weight, low resistance, small inclination angle of the gas phase path, regular, full gas contact, good separation effect, high efficiency, pressure reduction and other characteristics.

Metal wire mesh corrugated packing (stainless steel corrugated packing) applications:

Wire mesh corrugated packing (stainless steel corrugated packing) is currently the world's more widely used high-efficiency packing, especially for vacuum distillation tower. Mainly used in petrochemical industry, fertilizer industry, natural gas purification, smelting and so on. Such as coal chemical industry (in the coking plant to recover crude benzene washing tower), ethyl styrene separation, high purity oxygen preparation, propylene oxide separation, debutane tower, cyclohexane recovery, gasoline fractional distillation, atmospheric decompression refining and other installations as and so on. Such as in the crude oil degassing and dehydration treatment process in the three-phase separator or two-phase separator packing. TBU is suitable for dealing with heat-sensitive, easy to decompose, easy to polymerize, easy to carbonize materials.

Specification parameters of wire mesh corrugated packing (stainless steel corrugated packing):
