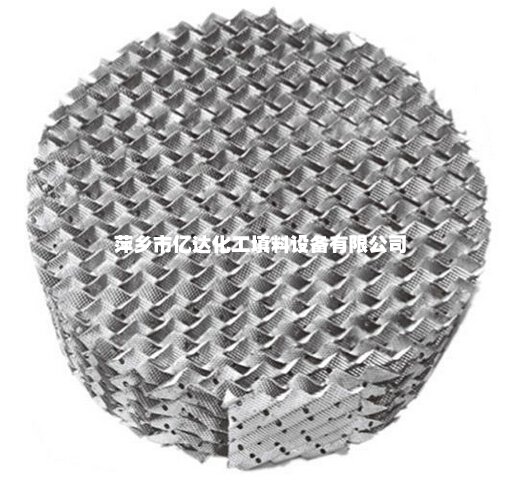

Orifice plate corrugated packing is a general-purpose structured packing. It is made of a perforated plate with grooves on the surface. The perforated plate corrugated packing is assembled by rolling small waves and large waves on the surface of the metal sheet. The perforated plate corrugated packing maintains the structural characteristics of the wire mesh corrugated packing, increases the uniform distribution of the liquid and the wetting performance of the packing, and improves the mass transfer efficiency.

Characteristics of orifice plate corrugated packing:

Orifice plate corrugated packing has the characteristics of small resistance, uniform gas-liquid distribution, high efficiency, strong anti-blocking ability, large flux, and unobvious amplification effect. It is used in negative pressure, normal pressure and pressurized operation.

It has the characteristics of high theoretical plate number per meter, low pressure drop per meter of packing, and low liquid holdup.

Material of orifice plate corrugated packing:

Material: stainless steel, carbon steel, 304L, 316L, phosphor bronze, etc. It can also be customized according to customer requirements. ,,

Application of perforated plate corrugated packing:

Perforated plate corrugated packing can be widely used in unit operations such as fine chemicals, fertilizers, oil refining, petrochemicals, natural gas distillation, absorption, extraction, etc., fine chemicals, spices, isomer separation, suitable for separation of heat-sensitive substances, test towers and transformation of existing towers. Model Y125, stacking density 80kq/m3, specific surface area 125m2/m3, porosity 0.985m3/m3, inclination 45 degrees.

Typical applications

Chemical industry: ethylbenzene/styrene, tall oil, cyclohexanone/cyclohexanol, air separation

Petrochemical industry: quench tower, C3 and C4 fractionation tower, xylene fractionation tower

Refinery: vacuum and atmospheric tower

Absorption: natural gas drying, carbon dioxide and hydrogen sulfide absorber and steam dike tower, ethylene oxide absorber and steam dike tower, acrylonitrile absorber

Perforated corrugated packing applicable tower data:

n Minimum tower diameter is 80-200mm, maximum tower diameter has reached 13000mm

n Pressure drop per meter theoretical stage 140~300Pa

n Minimum liquid load is about 0.5 m3/m2h

n Maximum liquid load is as high as 150 m3/m2h (usually in desorption tower)

Corrugation tilt angle

n X: 30° Y: 45°
